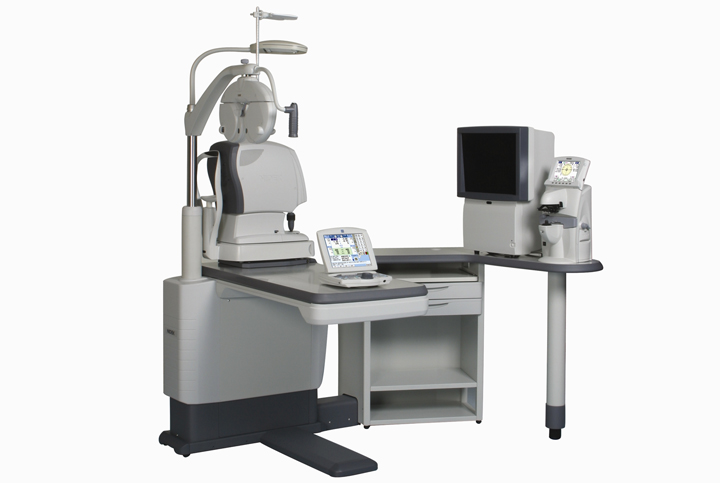

Epic 5100 Refraction System

Renders the Traditional Exam Lane Obsolete

Imagine your life just got easier. Vision diagnostic results are faster, yet more accurate than ever. Patient throughput has increased by 30-50% and patient satisfaction has never been higher. And, you have more time to spend as you like, for personal leisure or patient care.

Meanwhile, your staff is more efficient and profits keep increasing. This is the EPIC refraction system at work. It’s today’s most innovative way to streamline operations, grow your business and build your dream practice.

The EPIC decreases work-up times to less than 10 minutes and performs the refractions in 3-5 minutes. Now you can confidently delegate data gathering to your technicians and focus on data assessment, diagnosis and prescribing a final correction.

Brought to you by Marco, the Leader In Vision Diagnostics®, the EPIC is efficiency on-sight. From office productivity to patient care to the exam room to the bottom line,

Marco Epic 1500


Refractive Power/Corneal Analyzer

Marco gives you an instrument that can evaluate the patient’s total optical system. The technology allows for extreme accuracy and anchors the “30 Second Refraction.” The 3-D Wave combines multiple advanced technologies – plus wavefront analysis – in one easy-to-use refractive diagnostic workstation.

Now, with a single device, you can obtain refraction, corneal topography, low and high order aberrations, lenticular analysis, pupilometry and wavefront analysis!

The 3-D Wave allows you to evaluate your patient comprehensively, perform refractive and cataract surgery screenings (including multifocal, accommodative and wavefront IOL’s), evaluate postoperative complaints, determine pathology diagnoses and diagnose patient complaints which would not have been diagnosed before!

Marco OPD Scan III

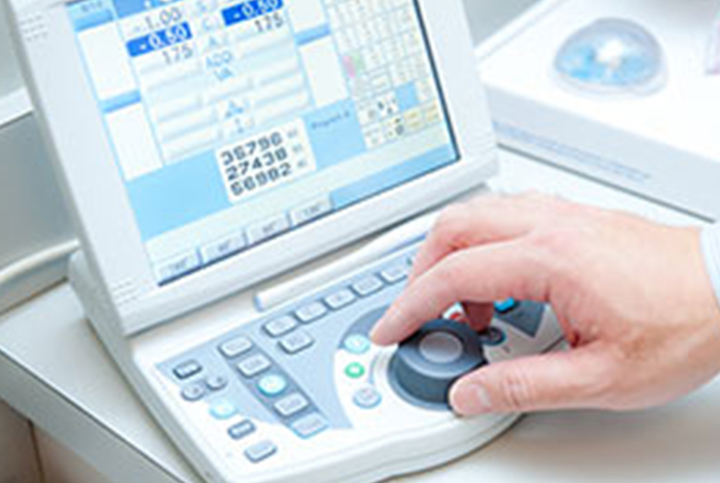

TRS 5100 / TRS 3100

Electronic Refraction Technology

Marco’s latest generation of electronic refraction technology, the TRS 5100 and TRS 3100 replace the standard refractor, allowing practitioners to control the entire refraction process from a keypad or remote control small enough to sit in their lap.

Obtain an immediate comparison between a patient’s unaided vision, old prescription and the patient’s new prescription — with a simple touch of a button!

Marco TRS 5100

The Marco M3

Three Instruments In One

Marco proudly introduces the newly redesigned M3. The new M3 offers the same space and time saving features as well as the dependability of the original M3, because it is 3 instruments in one, the only one of its kind.

The newly redesigned M3 presents several enhanced features such as a smaller footprint, to save even more space, and a new exterior design, but most importantly, the M3 now uses SLD (Super Luminescent Diode) and a highly sensitive CCD device to provide Zonal Ring-Image Technology. This makes it possible to now accurately measure patients with cataracts, corneal opacities, IOLs, and post LASIK.

• Automatic Refraction
• Automatic Keratometry
• Non-Contact Tonometry
• Space Saving
• Time Saving
• High-Speed Measurements

• Accurate Data
• EyeTracking System
• Auto Measure
• Adjustable Monitor
• Motorized Chinrest
• Softer Air Puff

The Marco M3

ARK 1s


Marco and Nidek are proud and excited to announce the newest autorefractor/autokeratometer available. The ARK-1s measures objective spherical, cylindrical refractive errors and cylinder axis from the refractive status of the patient’s eye. In addition, this is the first ARK that combines the capability of glare testing with, low contrast testing, accommodation, retro-illumination, visual acuity chart presentation and the ability to subjectively refine the sphere.

The glare testing capability makes it easier to test patients with cataracts. Traditional methods can be cumbersome and time consuming with questionable accuracy. With Medicare cuts prevailing, it is important to have a consistent measurement to help accurately qualify patients for cataract surgery. For doctors who also use low contrast testing for their patients, the ARK-1s has the capability. The accommodative measurement helps doctors to detect problems in pre-presbyopia, latent hyperopes, and children that have trouble reading. The retro-illumination modality helps to educate patients, with an actual image of their cataract progression.

This all-in-one compact design has Nidek/Marco’s famous auto alignment EyeTracking System on the X-Y-Z axis for consistent, accurate readings.

Marco ARK 1s

HandyRef System

Handheld Refractometer Keratometer

The HandyRef-K / HandyRef is a Handheld Ref / Keratometer Handheld Refractometer that is the portable solution for accurate refraction and keratometry measurements anytime and anywhere.

The HandyRef-K / HandyRef is lightweight and also has excellent weight distribution. Its compact design makes it easy to hold, balance, and use. Intelligently designed button layout is also useful in one-handed operation. New full graphic 3.5-inch color LCD is 40% larger than the previous model. Clear screen design and intuitive icons provide high user-friendliness. The measurement data of 50 patients (100 eyes) can be saved in the main body memory. For inexperienced patients like children, newly added melody function can ease patient’s anxiety and draw attention. Data can be transferred quickly and easily to PC. Two types of fixation target (scenery or children’s) are available. By using the portable stand, the HandyRef-K / HandyRef can be used as a desktop device.

The HandyRef-K / HandyRef adopted an excellent new measurement method; “SynchroScan Technology”. Measurements start when the alignment starts, and locks in the data when alignment becomes optimal as a measurement value. Accuracy is further enhanced with the pupil zone imaging method, a super luminescent diode (SLD) and highly sensitive CCD. The features of the HandyRef-K / HandyRef allow easy, accurate measurements while maintaining efficiency

Marco HandyRef

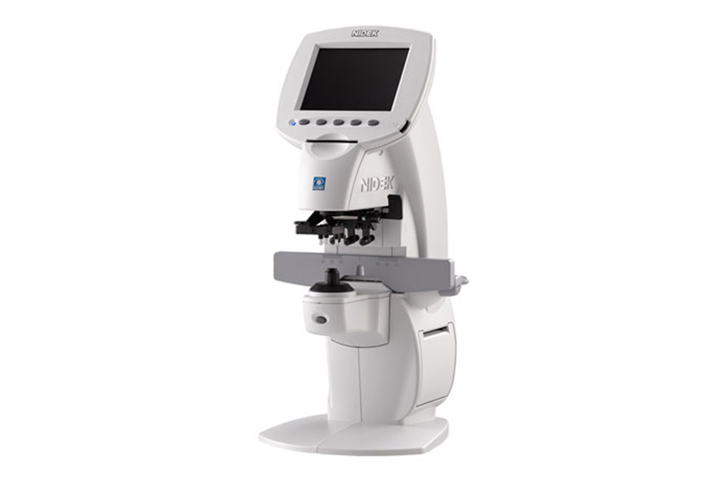

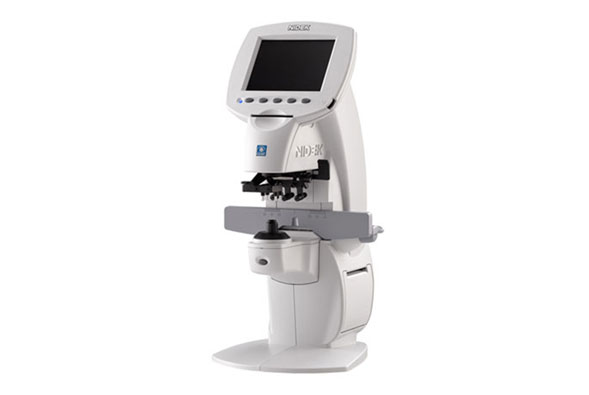

LM 600/600P/1800PD

Wavefront Lensmeter

The Marco automatic lensmeter series have the latest technology in lens measurement, providing simple and fast measurements. Their quick detection and measurement acquisition offers unparalleled functionality and performance versatility, making it the most advanced automatic lensmeter series available on the market today.

• Hartmann-Shack Principle 108 points of data
• Automatic Lens Detection
• Full Color & Graphic LCD
• High-Speed Printer with Automatic Cutter (LM-1200 & LM-600P only)
• UV Transmittance Measurement
• Adjustable LCD monitor
• Easy PD measurement
• Green Measurement Light (LM-600 & LM-600P only)
• Built-In IC Card Reader (LM-600 & LM-600P only)
• Wide Prism Measurement Range (LM-600 & LM-600P only)

Marco LM 600

AFC 330

The Advanced Fundus Camera

The AFC-330’s automated functions forge new ground in fundus imaging technology with focus on capturing the perfect picture every time, regardless of operator experience or skill level. The AFC-330 makes numerous command calculations per second. Only this level of automation can account for the speed of operation and accuracy of this camera – the essential foundation of practice efficiency.

Being equipped with this level of sophistication, the AFC-330 is able to align and automatically switch from anterior to posterior focusing.

Three-Dimensional Automatic Alignment


Patient movements are detected and followed automatically


For maximum ease of use


When optimal conditions are met, the photo is acquired

Benefits of Advanced Automation

The AFC-330 delivers unsurpassed ease of use with advanced features that enhance the management of retinal disease, such as glaucoma and diabetic retinopathy.

Available modes include:
• AutoStereo Pairing – separation and focal adjustments without user intervention
• AutoPanoramic Imaging – seven fields, performed with automatic fixation adjustments
• External Photography – automatic adjustments to device settings for optimized results
• Single 45° – advanced or standard fixation The AFC-330 now offers advanced standard-of-care imaging techniques that are practical to perform without disrupting patient flow.

Patient Comfort

The AFC-330 improves efficiency in time, space, and patient comfort. The lower flash intensity and sound-dampened mechanical movements, along with automatic blink and pupil measurement, make for the perfect picture every time with fewer retakes and happier patients. It is arguably one of the fastest automatic retinal cameras available with capture time often less than five seconds.

• Low-light photography mode with reduced flash intensity
• Quiet operation reduces patient anxiety, squinting, and blinking
• AutoBlink indicator
• Small-pupil mode – 3.3mm
• High-speed image capture

Marco AFC 330
Marco AFC 330
